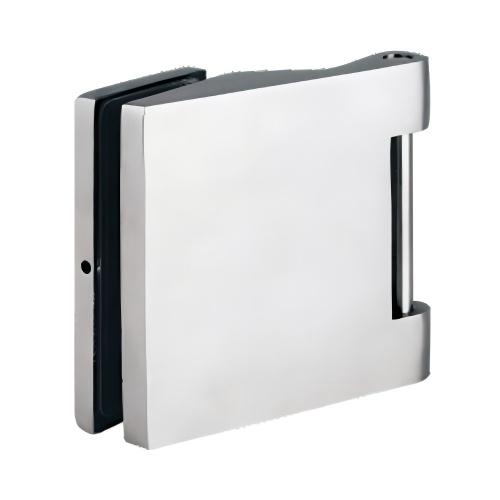

Glass Shower Door Hinges are high-precision connectors designed specifically for frameless glass doors, supporting and controlling the opening and closing of the door leaf. Through metal clamping and a precision hinge structure, they allow the door to rotate smoothly within a defined angle while maintaining a good seal and stability. With their simple appearance, smooth rotation, and secure installation, they are a crucial component in achieving the frameless design and long-lasting durability of modern bathroom spaces. Their high-quality machining accuracy and corrosion resistance ensure a stable and reliable opening and closing experience even in high-humidity and heavy-use environments.

High-Load-Bearing Design

These glass shower door hinges are made of SUS304 or SUS316 stainless steel. A single hinge can withstand a static load of 400N, and two hinges can securely support glass doors weighing up to 40kg. The main shaft structure undergoes heat treatment and is reinforced to a hardness of HRC32 or higher, effectively resisting deformation caused by long-term stress.

Excellent Corrosion Resistance

Both SUS304 and SUS316 offer excellent rust and corrosion resistance. In a neutral salt spray test, SUS304 remains rust-free for 72 hours, while SUS316 performs even better, lasting over 120 hours. Brushed or mirror-finished, the surface roughness is controlled to Ra ≤ 0.8μm, effectively reducing moisture adhesion and improving stain and fingerprint resistance.

Precision Rotation System

These shower door hinges utilize a high-precision bearing structure. The clearance between the shaft and the sleeve is less than 0.05mm, and the opening and closing angles are controlled to within ±2°. The opening and closing resistance torque is maintained between 0.8 and 1.2 N·m, ensuring smooth, shake-free door rotation. After over 100,000 opening and closing cycles, the hinge maintains accurate alignment and a tight seal.

Stable Clamping Structure

The glass clamping surface features a widened design, with a 2mm thick EPDM gasket for stress distribution, effectively preventing edge cracking. The connecting screws utilize M6 stainless steel fasteners, with a recommended installation torque of 8-10 N·m to ensure consistent operation even with frequent opening and closing. The hinge's large clamping area and high coefficient of friction ensure the glass door maintains its axis stability during opening and closing, preventing sagging or shifting.

Exquisite Surface Finish

The hinge surface is finished with either a satin brushed or polished mirror finish, achieving a Vickers hardness of over HV200 and 30% higher wear resistance than standard electroplated parts. The mirror reflectivity reaches 60%, and the brushing direction consistency within 5° ensures a smooth and uniform appearance.

Home Shower Spaces

In home bathrooms, these Glass Shower Door Hinges can stably support glass doors 8-10mm thick and 600-750mm wide, with daily opening and closing cycles exceeding 50. Opening and closing deviation is controlled within ±2°, ensuring a tight fit between the door and the magnetic seal, preventing moisture from escaping. Their exceptional quietness ensures quiet operation in enclosed spaces, reducing metal-to-metal noise and enhancing daily comfort.

Business Hotel Bathrooms

Business hotel guest bathrooms experience frequent and prolonged use. These hinges have passed 100,000 opening and closing cycle durability tests, maintaining structural stability. Their stable gloss and easy-to-clean surface minimize maintenance and maintain a consistent, professional appearance throughout the hotel bathroom.

Public Bathing Areas

Public bathing areas experience humidity levels exceeding 90% year-round, and chlorine-containing environments can easily cause oxidation on conventional hinges. These glass door hinges have an IP44 rating, offering excellent water and moisture resistance. The surface's corrosion-resistant coating resists chloride ion penetration and moisture corrosion, ensuring smooth, long-term rotation. It maintains high structural strength and stability even under heavy traffic conditions, providing a reliable structural guarantee for public bathing areas.

Medical and Healthcare Facilities

These environments place extremely high demands on cleanliness and safety. The hinge's surface roughness is controlled to within Ra0.8μm, making it impervious to dirt and facilitates daily cleaning and disinfection. The oil-free lubrication design and fully enclosed hinge shaft structure prevent bacterial accumulation, enhancing hygiene and safety. Its high-strength support ensures safe use and long-term stability in medical settings.

Daily Cleaning and Maintenance

We recommend using a neutral detergent and a soft cloth to wipe the hinge surface weekly. Avoid using acidic, alkaline, or chlorine-containing solutions. Rinse with clean water and wipe dry after cleaning to prevent scale accumulation. Keeping the door dry effectively prevents oxidation and corrosion on the metal surface, extending the life of the mirror finish.

Regular Tightening Inspections

Check the tightness of the mounting screws every six months. A pre-tightening torque of 8 N·m is recommended. If slight sagging is detected, adjust the clamping position and re-tighten the rubber gasket. This prevents structural deformation or loosening caused by uneven glass stress, ensuring long-term stable operation.

Regular Lubrication and Maintenance

Apply 0.2g of silicone-based grease to the hinge every 12 months to maintain smooth opening and closing. After lubrication, wipe off any excess grease to prevent dust from sticking. Lubrication and maintenance reduce friction, extend the life of the hinge core, and maintain a stable opening and closing resistance torque.

Moisture Prevention and Rust Removal

Maintain ventilation in the bathroom after use to prevent moisture from accumulating. If there are slight water marks on the surface, wipe it gently with a dry cloth along the brushing direction. In coastal areas or high-salt environments, it is recommended to wipe it with clean water once a month to reduce corrosive ion deposition.
