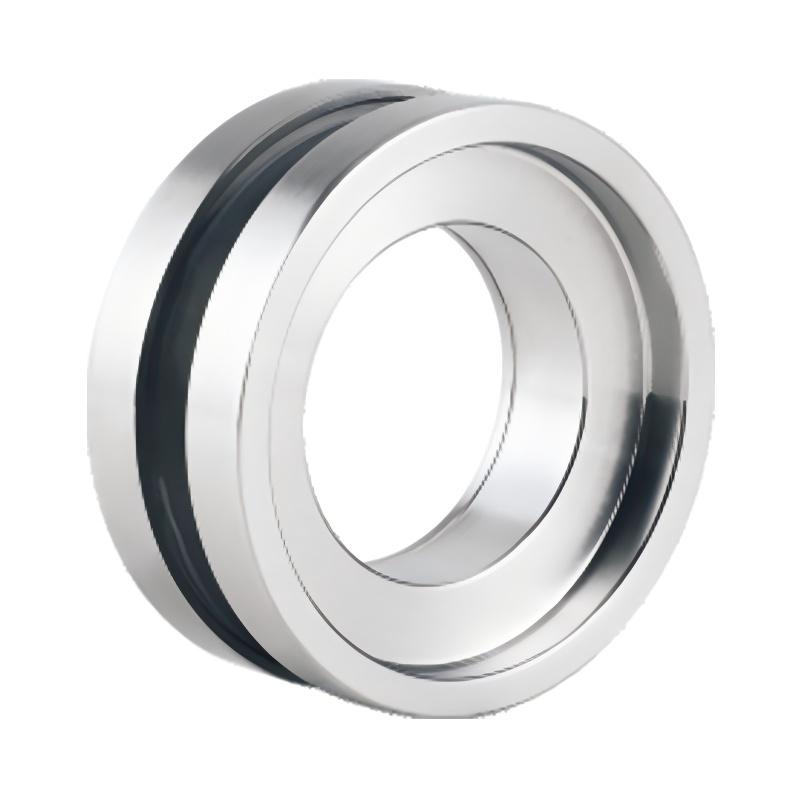

Measuring a sliding Glass Door Handle may seem simple, but precision is key to ensuring a perfect fit, smooth operation, and long-term durability. A miscalculated measurement can lead to alignment issues, gaps, or difficulty in Locking the door properly. Whether replacing an old handle or upgrading to a modern aluminum design, accurate dimensions determine compatibility and performance.

At DALILAI, we specialize in manufacturing Sliding Door Handles engineered for exact fitting and seamless installation. This guide will explain how to measure your sliding glass door handle correctly, what dimensions matter most, and how to interpret them for replacement or new installation.

1. Understanding the Structure of a Sliding Glass Door Handle

Before you begin measuring, it’s important to understand the basic components and dimensions that make up a sliding door handle. A handle set typically includes both an interior and exterior pull, along with a latch mechanism and a mounting plate or screw hole pattern.

Common Components:

• Handle Pulls: The grip sections on the inside and outside of the door.

• Mounting Screws: Fasteners that connect the handles through the door panel.

• Latch Mechanism: A locking or catch component that secures the door when closed.

• Key Cylinder (optional): Found on lockable handle sets.

Each of these parts affects how the handle fits onto the door. For example, the screw spacing must match the existing holes on your glass door, while the handle depth determines how comfortably it fits your hand.

DALILAI’s sliding door handles are designed with universal hole spacing and adjustable fittings, allowing easy installation across most standard door types — whether aluminum, PVC, or glass-framed systems.

2. Measuring the Screw Hole Spacing

The screw hole spacing is the most critical dimension when replacing a sliding glass door handle. This distance determines whether the new handle aligns with your door’s existing holes without additional drilling.

Step-by-Step:

1. Remove the old handle using a screwdriver, keeping the original screws for reference.

2. Measure from the center of one screw hole to the center of the other — not from edge to edge.

3. Record the value in millimeters (mm), as most handle dimensions are standardized in metric form.

When selecting a new handle, compare your measurement with the manufacturer’s specifications. DALILAI offers a range of models with adjustable hole spacing to fit both standard and customized frames. Our precision-machined aluminum bases ensure perfect alignment, reducing vibration and wear during daily operation.

3. Measuring Handle Length and Projection Depth

While screw spacing defines the mounting alignment, the overall handle length and projection determine usability and aesthetics. Handles that are too short can be difficult to grip, while those that protrude excessively may interfere with nearby walls or blinds.

Handle Length

Measure the full length of the handle grip — from top to bottom. This affects both ergonomics and visual proportion. Standard sliding glass door handles typically range from 220 mm to 300 mm, though DALILAI also manufactures extended versions up to 400 mm for large-format glass doors.

Projection Depth

Projection refers to how far the handle extends outward from the door surface. To measure it:

1. Place a ruler or caliper from the glass surface to the outermost point of the handle.

2. Note the distance in millimeters.

3. Ensure that the projection allows easy gripping without colliding with adjacent door panels.

DALILAI’s handle series uses a low-profile ergonomic curve, combining comfortable grip depth with a sleek design that complements modern frameless door systems.

4. Measuring the Backset and Latch Mechanism

The backset is the distance between the edge of the door and the center of the handle’s mounting screw or latch mechanism. This measurement determines where the lock or latch engages with the strike plate, affecting how smoothly the door closes and locks.

How to Measure:

1. Identify the latch cutout on the door edge.

2. Measure from the door edge to the center of the screw or latch hole.

3. Common backsets for sliding glass doors range between 20 mm and 35 mm.

Accurate backset measurement ensures that the latch mechanism aligns perfectly with the frame’s strike plate. If the backset is too shallow or too deep, the handle will feel misaligned or the latch may not engage properly.

DALILAI’s handles are designed with adjustable latch positioning systems, allowing installers to fine-tune the fit within a few millimeters — ensuring a perfect locking engagement regardless of door thickness or brand.

5. Considering Door Thickness and Handle Compatibility

The thickness of the door panel directly influences which handle model is suitable. Sliding glass doors typically range between 25 mm and 45 mm thick, but thicker insulated glass systems require extended handle sets.

How to Measure Door Thickness:

1. Open the door fully.

2. Use a caliper or ruler to measure from one exterior surface to the opposite side.

3. Record the measurement in millimeters.

Once you have the door thickness, compare it with the handle specification. Handles that are too narrow may not accommodate the screws or latch depth correctly. DALILAI’s handle collections offer customizable spindle lengths and multi-layer mounting kits, making them compatible with single-glazed, double-glazed, and laminated glass doors.

Our engineering team pays special attention to the handle’s internal spacing tolerance, ensuring smooth installation even when doors expand or contract slightly with temperature changes.

6. Finishing, Design, and Quality Standards

While measurements define compatibility, the finishing and design quality determine longevity and user experience. A precisely measured handle must also offer resilience, aesthetics, and comfort.

Surface Finish

DALILAI’s handles are available in brushed aluminum, matte black, silver anodized, and powder-coated finishes. These treatments enhance corrosion resistance, reduce fingerprints, and maintain shine even under heavy use.

Structural Strength

Each handle undergoes tensile and fatigue testing, ensuring it can withstand thousands of operations without deformation. Reinforced internal ribs inside the aluminum body distribute force evenly, preventing bending and loosening over time.

Design Harmony

Measurement also affects design balance — the handle’s proportion should align with the glass panel size. For example, a minimalist frameless door benefits from a slender linear handle, while large sliding doors look more balanced with elongated pull styles. DALILAI’s engineering and design teams collaborate closely to achieve precision aesthetics, ensuring that every handle not only fits perfectly but also enhances the visual appeal of the entire door system.

Conclusion

Accurately measuring a sliding glass door handle is essential for achieving a secure, ergonomic, and visually pleasing installation. By carefully checking the screw hole spacing, handle length, projection depth, backset, and door thickness, you can ensure full compatibility with your existing sliding system.

At DALILAI, our precision-engineered sliding door handles combine measurement accuracy with refined craftsmanship. Every model is designed for smooth function, easy installation, and long-lasting durability — meeting the needs of both residential and commercial users worldwide.

If you’re planning to replace or upgrade your sliding door handle, take your measurements carefully and choose a design built on precision and reliability.
