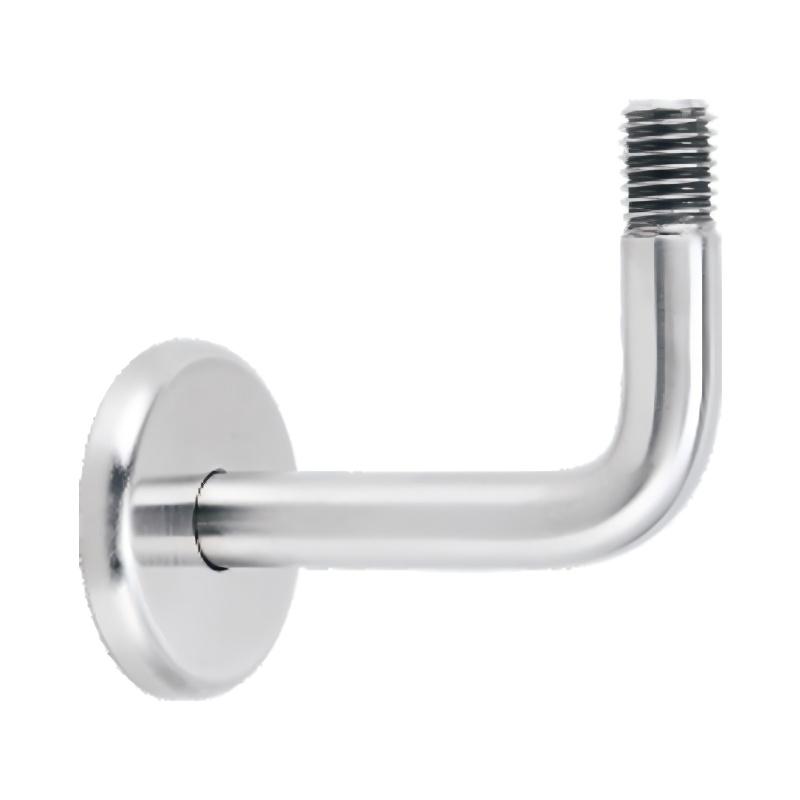

Handrail Brackets may seem like small components, but accurate measurement determines whether a railing system is safe, stable, comfortable to use, and visually aligned with the surrounding structure. When replacing old brackets, installing a new staircase handrail, or upgrading to a modern stainless-steel system, correct measurements help ensure smooth installation and proper spacing. This article explains How To Measure Handrail Brackets, how dimensions vary according to different applications, and how to select the right size for homes, commercial buildings, and public spaces. For users seeking durable and precisely engineered hardware, DALILAI provides high-quality handrail brackets designed for reliable performance across a wide range of railing systems.

How to Measure Handrail Brackets

Handrail bracket measurement focuses on three core dimensions: the projection from the wall, the vertical rise from the mounting plate to the rail saddle, and the width or fit of the saddle that attaches to the handrail. These measurements ensure the handrail remains at the correct height, distance from the wall, and angle for safe support.

Measuring the Projection (Distance From Wall to Handrail)

The projection determines how far the handrail sits from the wall. To measure:

• Place a tape measure at the wall mounting point.

• Measure horizontally to the point where the handrail will rest on the bracket saddle.

• Include the thickness of the handrail itself when calculating final clearance.

Projection affects user comfort and accessibility. Many building codes require at least enough clearance for a full grip, ensuring the user’s fingers do not press against the wall while holding the rail. DALILAI brackets are engineered with consistent projection sizes suitable for residential and commercial grip standards.

Measuring the Vertical Rise (Height of Bracket)

Vertical rise refers to the distance between the wall plate and the saddle where the handrail rests. It ensures that once mounted, the rail sits at the correct overall height along the staircase. To measure:

• Determine the ideal handrail height based on project requirements.

• Measure the vertical difference between the mounting point and the final handrail height.

• Choose a bracket with a rise that fits this spacing.

Different stair profiles or wall structures may require slightly different bracket heights. A tall bracket may be needed when the rail must align with a sloped stairway, while a shorter one works for flat balcony rails or horizontal installations.

Measuring the Saddle Width and Curve

The saddle must fit the underside of the handrail securely. Measurements include:

• Handrail width: measure across the bottom of the rail.

• Handrail curvature: note the shape—round, flat-bottom, oval, or rectangular.

• Screw position spacing: measure the distance between screw holes needed for the saddle.

DALILAI provides universal and custom-fit saddle designs that accommodate round and flat rails, offering stable grip and precise alignment.

Measuring the Mounting Plate Size

The wall plate or base plate attaches the bracket to the wall. To assess whether it fits your installation area:

• Measure the available wall surface.

• Note the diameter or width of the mounting plate.

• Check hole spacing for screws or bolts.

A larger mounting plate offers better load distribution, while a small plate suits narrow or decorative mounting surfaces.

Recommended Measurement Table

Below is a simple guide showing how measurements relate to common applications:

DALILAI brackets are produced with consistent manufacturing standards, offering multiple projection and rise options to support these diverse needs.

Different Sizes for Different Applications

Handrail brackets are not one-size-fits-all. The ideal size depends on where and how the handrail will be used. Proper measurement helps comply with building safety standards, accessibility requirements, and ergonomic comfort.

Residential Stairways

Residential staircases require brackets that place the handrail at a comfortable grip height. The projection should allow sufficient finger clearance, while the bracket height should align with the natural slope of the stairs. Home installations often prioritize aesthetics, so compact brackets with smooth curves are common.

Commercial and Public Buildings

In public buildings, brackets must support heavier loads because handrails are used by people of all ages and mobility levels. Larger mounting plates and increased projection help accommodate thicker handrails required for safety codes. Stainless steel brackets like those from DALILAI offer higher durability and corrosion resistance for long-term use.

Outdoor Balconies and Corridors

Outdoor environments require corrosion-resistant metal brackets with minimal projection to reduce obstruction in narrow walkways. A lower rise is common because balcony rails are often installed horizontally rather than along a staircase slope.

Accessibility (ADA or Barrier-Free Design)

For spaces required to meet accessibility guidelines, measurements must meet stricter standards. Projection is typically larger to ensure comfortable grip, and bracket placement must maintain consistent spacing along the entire railing length. The saddle must securely hold a round handrail of standardized diameter.

Decorative or Minimalist Installations

Design-focused interior projects sometimes use slim, modern metal brackets with minimal rise and compact wall plates. These installations rely heavily on precise measurement to maintain a clean, aligned look. Solid stainless steel brackets support such minimal designs without compromising structural integrity.

Common Questions About Measuring Handrail Brackets

Because handrail systems must be both safe and aesthetically pleasing, users have many questions about sizing and placement. Below are the most frequently asked concerns.

How many brackets do I need?

The number depends on rail length. Generally, install brackets every 90–120 cm. Longer distances may lead to sagging or instability.

Should projection be the same for every bracket?

Yes. Consistent projection ensures the handrail remains straight. Mixing bracket sizes causes misalignment and uneven grip.

What if my wall is uneven?

Use brackets with adjustable mounting plates or allow for slight spacing behind the bracket during installation. DALILAI brackets offer secure mounting even on slightly imperfect wall surfaces.

How do I measure for a sloped stair handrail?

Measure the height from the floor along the slope, not vertically. Handrail height must remain consistent along the incline. Use brackets with an appropriate rise to maintain a smooth angle.

Do metal and wooden handrails require different bracket measurements?

The overall measurement steps are the same, but wood rails may need wider saddles or different screw configurations. Metal rails often use round saddles with fixed spacing.

What is the ideal handrail height?

Residential: 860–960 mm
Commercial: around 900–1000 mm
Accessibility: follow local ADA or regional code standards

Bracket rise is selected based on this height and the mounting location.

How do I measure the handrail angle?

Use a digital or manual angle finder. Knowing the incline helps choose brackets that match the stair slope, ensuring the saddle sits flush against the rail.

Summary

Measuring handrail brackets correctly ensures safe, comfortable, and visually aligned railing systems. By focusing on projection, rise, saddle size, and mounting plate dimensions, installers can match the bracket to the handrail and the environment. Different applications—from residential staircases to commercial hallways and balcony rails—require different bracket dimensions, making accurate measurement essential.

DALILAI’s handrail brackets are engineered for precision, durability, and compatibility with a wide range of railing systems. With proper measurements and thoughtful selection, you can achieve a sturdy, elegant handrail installation that supports daily use and complements the surrounding design.
