A handrail is only as strong as the brackets that support it. Whether installed along a staircase, balcony, or corridor, the correct number and spacing of brackets determines not just safety but also comfort and long-term stability. Using too few can cause the rail to flex or detach under load, while excessive brackets can create unnecessary cost and aesthetic interruption. Understanding the balance between structural integrity, design requirements, and code compliance is key to professional installation.

The Purpose of Handrail Brackets

Handrail brackets serve as the link between the rail and the wall or post. Each bracket must transfer both vertical and lateral forces from the user into the structure. In stainless steel systems like ours, the bracket’s base plate anchors securely into concrete, tile, or wood, while the arm holds the rail at the correct distance and angle from the wall.

A properly placed bracket system achieves three functions:

• Support and rigidity — maintaining the handrail’s straightness and load capacity.

• Ergonomic consistency — keeping the grip height even along the entire length.

• Aesthetic continuity — aligning visually for symmetry and modern architectural finish.

The most common materials are SUS304 or SUS316 stainless steel, ensuring both strength and corrosion resistance for indoor and outdoor environments.

Typical Bracket Spacing and Quantity

The general engineering rule is that brackets should be installed every 900 mm to 1200 mm (3 to 4 feet) along the handrail. This spacing ensures that each bracket supports an adequate section of weight without overloading the fasteners.

For practical reference:

• A 2-meter handrail usually needs two brackets.

• A 3-meter handrail requires three brackets.

• A 4-meter handrail will use four or more brackets, depending on the wall material and user load expectations.

The end brackets should always be placed 100–150 mm from the ends of the rail to prevent bending stress at the extremities.

These values serve as a baseline; actual installations depend on material, environment, and use intensity.

Factors Influencing Bracket Quantity

Weight and Material of the Handrail

Heavier materials like solid stainless steel or hardwood demand closer spacing to distribute weight evenly. Lightweight aluminum or hollow tubing can tolerate wider intervals.

Wall or Mounting Surface Strength

A reinforced concrete wall allows wider spacing because each anchor can bear higher shear force. In drywall or light framing, additional brackets are necessary to maintain strength and reduce deflection.

Handrail Diameter and Shape

Larger diameters increase leverage on brackets when pulled sideways, requiring shorter bracket spacing for stability. Oval or rectangular rails distribute force differently, often benefiting from additional intermediate supports.

Direction and Application

Horizontal handrails on balconies experience mainly vertical loading, while staircase rails also bear diagonal and torsional stresses from user movement. For stairways, spacing tends to be slightly tighter—700–900 mm—to enhance stability during ascent and descent.

Application Scenarios and Recommendations

Indoor Staircases

In residential or office staircases, user comfort and aesthetic are primary. Brackets can be spaced around 900 mm apart. Stainless steel models with concealed mounting provide a sleek finish. When the wall is uneven or tiled, ensure each base plate contacts the surface fully to avoid twisting the arm.

Commercial Corridors

In public buildings where handrails are subject to constant use, more brackets are required to meet safety codes. The typical spacing is 700–800 mm, using heavy-duty brackets rated for higher load capacity. Anchors must penetrate into solid substrate, not plaster or decorative panels.

Outdoor Railings and Balconies

External installations must account for wind, vibration, and corrosion. Use SUS316 stainless steel for marine or humid climates, and reduce spacing to 800–1000 mm. Expansion anchors or chemical bolts are preferred for concrete or stone walls to prevent loosening under temperature changes.

Glass or Metal Mounting Systems

When a handrail is mounted on glass panels or metal balustrades, spacing depends on the supporting frame. Because the load transfers differently through glass fixings, brackets are usually positioned closer—600–700 mm apart—and paired with stabilizing posts or clamps to prevent flexing of the glass.

Structural and Aesthetic Balance

While technical standards determine minimum safety requirements, professional installers must also consider proportion and visual rhythm. Evenly spaced brackets provide symmetry and ensure that shadows and reflections remain uniform on polished stainless steel surfaces. The goal is not just strength but also seamless architectural integration.

For long continuous runs, joint alignment between rails should coincide with a bracket position to minimize bending at connections. This prevents mechanical stress and keeps the joint hidden behind the support.

Mounting Height and Angle Considerations

The bracket layout is equally affected by the mounting angle:

• On stairways, handrails typically follow a 30°–40° incline. The bracket stem should match this angle to maintain consistent grip height (850–950 mm above stair nosing).

• On horizontal runs, brackets maintain a fixed height (900–1000 mm above the floor).

• For turns or landings, additional brackets at the angle transition secure both sections firmly and maintain visual flow.

Each bracket’s projection (distance from wall to rail center) is also crucial for comfort—commonly 60–80 mm. This allows enough hand clearance while maintaining compactness.

Example: 3-Meter Stainless Steel Handrail Installation

A typical indoor 3-meter stainless steel handrail would be designed as follows:

• Three wall-mounted brackets spaced evenly at 1-meter intervals.

• The end brackets placed approximately 120 mm from each end.

• Anchors: M8 stainless expansion bolts embedded at least 40 mm deep.

• Load capacity: each bracket rated for over 100 kg vertical load.

• Finish: brushed or mirror-polished surface depending on interior design.

This configuration balances load distribution, aesthetics, and code compliance for both residential and commercial use.

Maintenance and Safety Checks

Properly spaced brackets will perform for many years, but regular inspection is essential:

• Tighten all screws annually, as temperature cycles can loosen anchors.

• Clean surfaces with neutral detergent; avoid chlorine or acidic solutions that attack stainless steel.

• Inspect for corrosion around mounting points, especially in outdoor environments.

• Check wall integrity—if cracks or tile separation appear, re-anchor the base plate.

Replacing a single bracket or anchor immediately prevents progressive failure along the handrail.

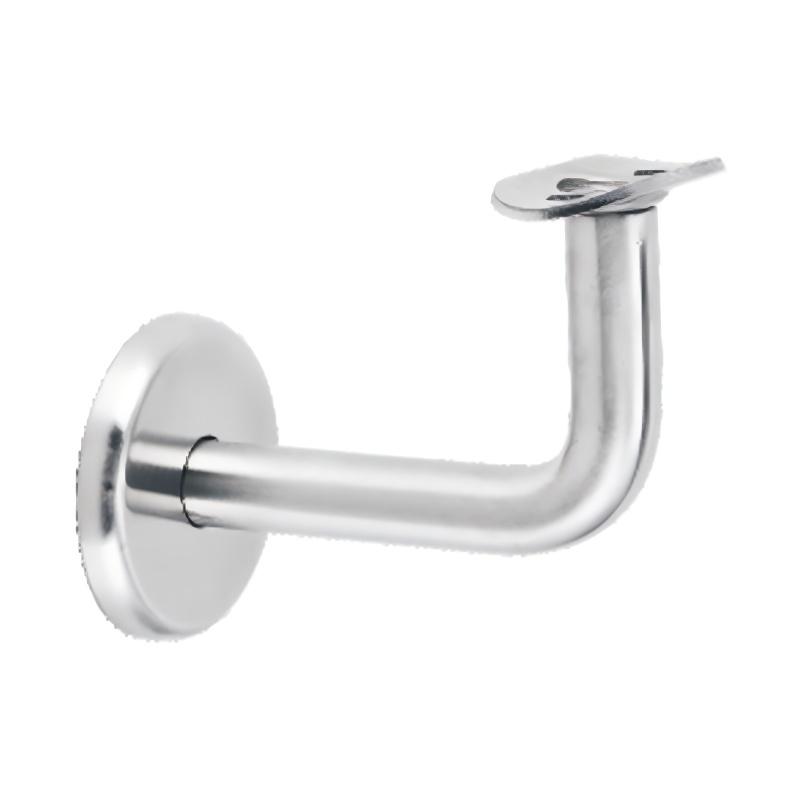

Choosing the Right Bracket Design

Our stainless steel handrail brackets are engineered for versatility:

• Fixed brackets with circular bases for solid masonry or concrete.

• Adjustable-angle brackets suitable for stair slopes or irregular walls.

• Short projection models for narrow corridors or compact installations.

• Square mounting plate versions for alignment with structural framing.

All models are made from precision-machined stainless steel with concealed screws for a clean architectural finish. The combination of functional strength and minimalist design suits both modern residential and commercial spaces.

Conclusion

Determining how many brackets a handrail requires depends on three main factors: span length, installation environment, and load demand. For most applications, spacing between 900 and 1200 mm ensures both safety and appearance. Stairways, public spaces, and outdoor installations demand closer intervals for added strength.

Using high-quality stainless steel brackets guarantees rigidity, corrosion resistance, and visual harmony. Proper spacing transforms a handrail from a simple support into an integrated element of architectural craftsmanship—safe, elegant, and built to endure.
