The spacing between handrail brackets is one of the most critical details in ensuring both structural safety and visual consistency. The distance between each bracket determines how much weight the handrail can bear, how it feels to the touch, and how well it integrates with the overall design of a staircase or corridor. Proper spacing isn’t a fixed number—it varies depending on the handrail material, wall strength, and the specific environment of installation. This guide explores these variables in depth and provides professional guidance for achieving the perfect balance between function and aesthetics.

Understanding the Role of Bracket Spacing

Handrail brackets support the rail and transfer user loads directly into the wall or mounting surface. When installed correctly, the rail remains stable and secure even under repeated pressure. Spacing that’s too wide causes bending or vibration, while brackets placed too close together can disrupt the visual rhythm and increase installation costs.

Optimal spacing ensures:

• Even load distribution across all brackets

• Reduced stress on fasteners and anchors

• Consistent handrail height and comfort

• Visual symmetry in modern architectural layouts

Every project should start by assessing both mechanical and ergonomic needs rather than relying solely on a standard measurement.

General Recommendations

In most applications, the ideal spacing between handrail brackets is 900–1200 mm (approximately 3–4 feet). This range works for the majority of handrail systems, providing a balance between strength and simplicity.

The first bracket should be installed 100–150 mm from the end of the handrail, preventing deflection at the edges. Additional brackets are then evenly spaced along the rest of the rail. For example:

• A 2-meter rail typically uses two brackets

• A 3-meter rail requires three brackets

• Longer installations should include intermediate supports every 1 meter for reliability

These are general guidelines—specific materials and environments may require closer or wider spacing.

Factors That Affect Bracket Spacing

Handrail Material

Heavier materials such as solid stainless steel or hardwood exert more load on brackets and need tighter spacing, around 800–1000 mm. Lighter materials like aluminum or PVC can span greater distances—up to 1200 mm—without risk of bending.

Wall Composition

The strength of the wall or mounting substrate determines how much load each bracket can carry.

• Concrete or brick walls: Provide high load capacity, allowing wider spacing.

• Wood stud walls: Require brackets aligned with studs (typically every 400–600 mm).

• Drywall or hollow partitions: Need reinforced backing or metal channels, often demanding closer spacing for safety.

Type of Bracket

Not all brackets carry the same structural capacity.

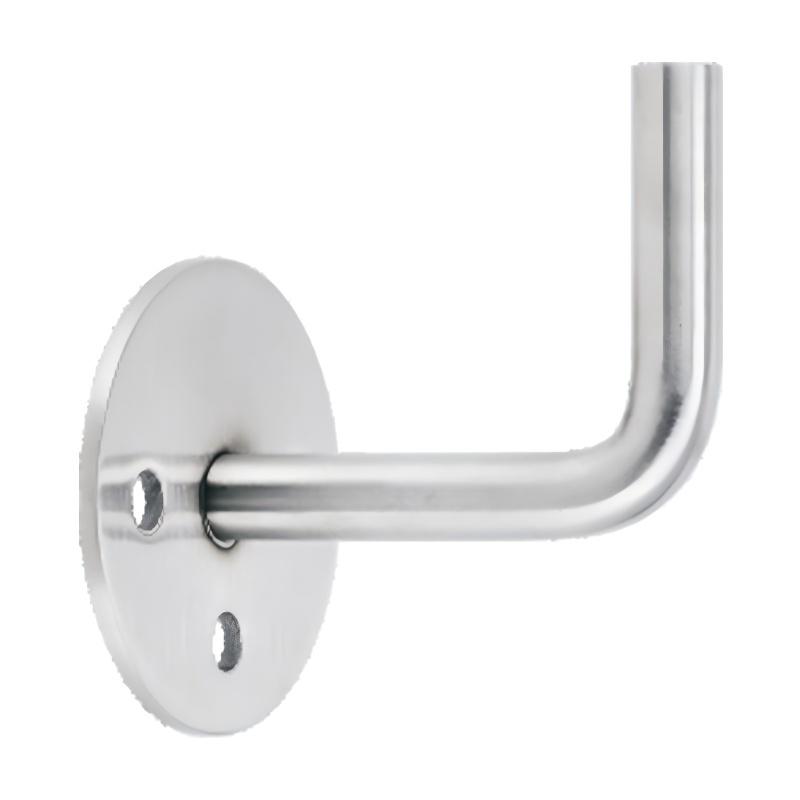

• Fixed brackets with solid stems can handle higher vertical loads.

• Adjustable-angle brackets are versatile but slightly less rigid, requiring narrower spacing.

• Glass-mounted brackets rely on clamps and should be placed more closely (typically 600–800 mm) to minimize flexing.

Load Requirements

In public or commercial buildings, handrails must meet strict load standards. Codes often specify that a handrail should withstand a minimum of 200–250 kg of concentrated force. To achieve this, brackets in such environments are spaced more closely than in residential settings.

Spacing by Application Environment

Residential Staircases

In homes, comfort and appearance take priority. Brackets spaced around 900–1000 mm apart maintain both balance and a clean aesthetic. When following stair angles of 30°–40°, ensure that brackets are positioned perpendicular to the slope so the rail remains parallel to the stair nosing line.

Commercial Buildings

Public spaces like office towers, hospitals, and schools experience higher traffic and heavier use. Brackets are usually installed every 700–800 mm, meeting safety codes and preventing vibration under load. Stainless steel with reinforced bases is preferred for durability and hygiene.

Outdoor Railings and Balconies

Exterior installations face additional forces from wind, temperature changes, and potential corrosion. In these settings, brackets are generally placed 800–900 mm apart, using SUS316 stainless steel for enhanced resistance to moisture and salt. Chemical anchors are recommended for concrete or stone surfaces to ensure stability over time.

Glass-Mounted Handrails

When the handrail is attached to a glass partition, spacing must be tighter because glass does not distribute load as effectively as masonry or wood. The ideal interval is 600–700 mm, with reinforced clamps and rubber isolators to prevent stress cracking. These installations should always follow the hardware manufacturer’s load test data.

Long Continuous Runs

For extended corridors or ramps exceeding 4 meters, intermediate brackets should be added to prevent deflection in the middle. Even when the wall material is strong, expansion from temperature or building movement can cause slight flexing if the spacing is too wide.

Engineering Considerations

The physics behind bracket spacing can be understood as a balance between bending moment and load distribution. Each bracket acts as a support point that reduces the span of the handrail beam. The shorter the span, the smaller the deflection under weight. For instance, halving the spacing reduces bending stress by roughly 75%.

In practical terms, when a user leans or pulls on the rail, force is concentrated between two nearest brackets. If they are too far apart, the rail may flex or loosen over time. Conversely, excessive brackets can over-constrain the structure, leading to uneven stress on fasteners.

A well-engineered design positions brackets where structural studs or reinforcements are present, ensuring both safety and material efficiency.

Aesthetic and Ergonomic Alignment

Spacing affects not only strength but also how the installation looks and feels. Evenly spaced brackets create rhythm and proportion, especially in minimalist interiors where stainless steel reflections emphasize geometry.

To achieve a professional finish:

• Maintain equal distances between brackets across all sections, including turns and landings.

• Align base plates precisely along the same centerline for a clean silhouette.

• Adjust bracket height carefully so the rail remains parallel to the stairs or floor.

• Ensure the wall-to-rail projection remains consistent—usually 65–80 mm for comfortable hand clearance.

A visually balanced layout enhances both functionality and user confidence when gripping the rail.

Spacing Adjustments for Special Designs

Curved Handrails

Curved or spiral stairs distribute load differently due to geometry. Brackets must follow the curve radius closely, often spaced 600–800 mm apart to maintain continuous support. Custom bracket arms may be required to match the curvature.

Multi-Level Systems

In installations that transition between stairs, landings, and ramps, bracket spacing should adapt to each section’s orientation. Extra brackets are added at directional changes to reinforce joints and prevent torsion.

Heavy-Duty Industrial Railings

Factories, warehouses, and loading docks subject handrails to greater impacts. Spacing is reduced to 600–700 mm with thicker base plates and deeper anchors. The brackets themselves are often welded or mechanically reinforced for higher load tolerance.

Installation Precision and Load Testing

After determining proper spacing, accuracy during installation is vital. Even small deviations can affect alignment or reduce load capacity.

• Use a laser level to project the handrail line before drilling.

• Mark all positions clearly before mounting.

• Always secure brackets into structural elements, not surface finishes.

• After installation, perform a simple load test by applying downward pressure of 100–150 kg to confirm rigidity.

If any movement or vibration occurs, reduce spacing or check for loose anchors.

Long-Term Stability and Maintenance

Correct spacing extends the life of both the brackets and the rail. Periodic maintenance ensures lasting safety.

• Inspect all bracket connections at least once a year.

• Retighten screws and anchors if minor movement is detected.

• Clean stainless surfaces with neutral detergent to prevent corrosion.

• Replace worn gaskets or seals in glass-mounted systems.

In high-humidity or coastal environments, rinsing the brackets with fresh water monthly helps prevent chloride accumulation and staining.

Design Integration and Professional Standards

High-quality installations don’t rely on guesswork—they follow recognized guidelines. Many international building standards, such as ISO 3506 for stainless fasteners and ASTM E985 for handrail systems, recommend supporting intervals of 900 mm or less under typical residential conditions. Local codes may further specify minimum load requirements and anchor types.

For architects and builders, the best practice is to integrate bracket placement into early design drawings. This ensures alignment with structural elements, lighting, and wall finishes. A coordinated layout avoids interference with switches, decorative panels, or glass joints.

Conclusion

The correct spacing between handrail brackets combines structural engineering, ergonomic design, and architectural precision. While 900–1200 mm is the general rule, every environment requires its own assessment—tighter for glass or heavy-duty use, wider for lightweight or decorative systems.

By applying professional judgment, accurate measurement, and quality stainless steel brackets, you ensure that the handrail remains safe, rigid, and visually refined for years to come. Proper spacing is not just a technical standard—it’s a reflection of craftsmanship, safety awareness, and design excellence.
