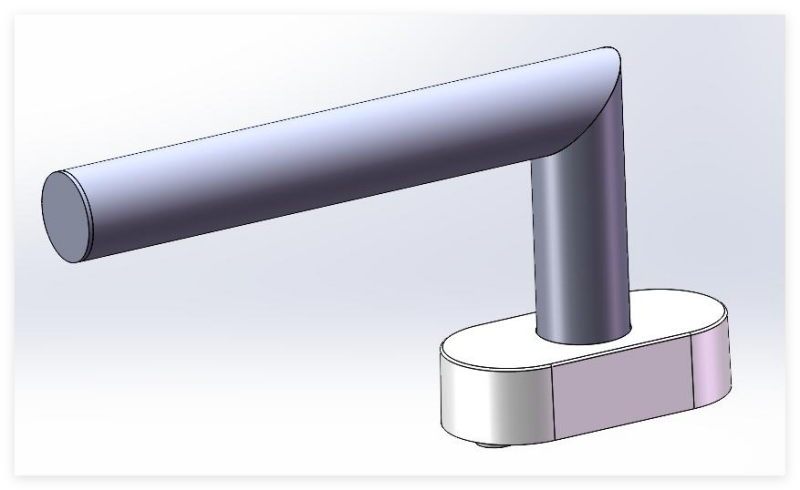

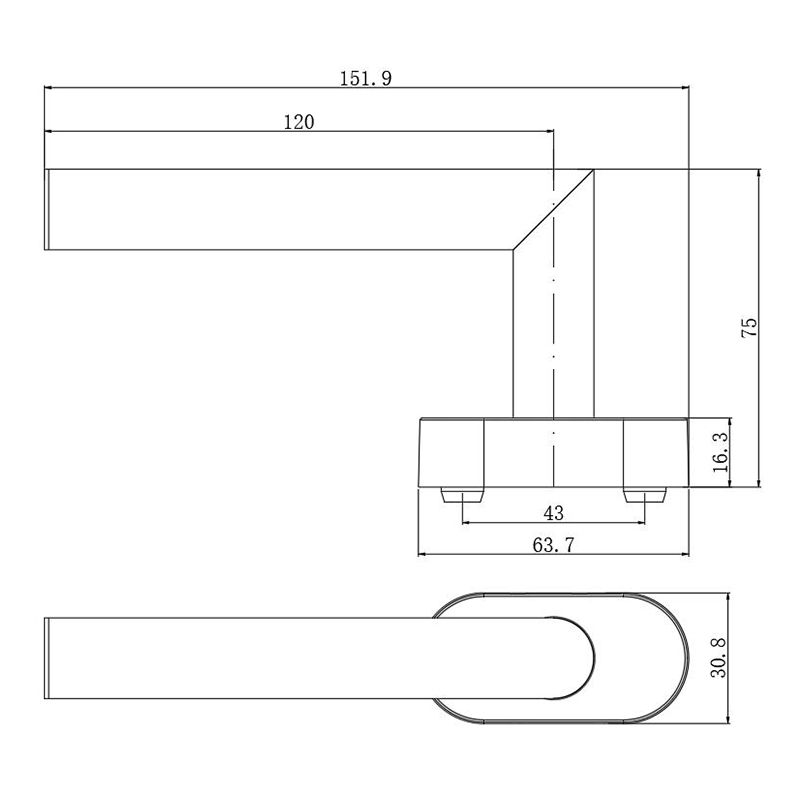

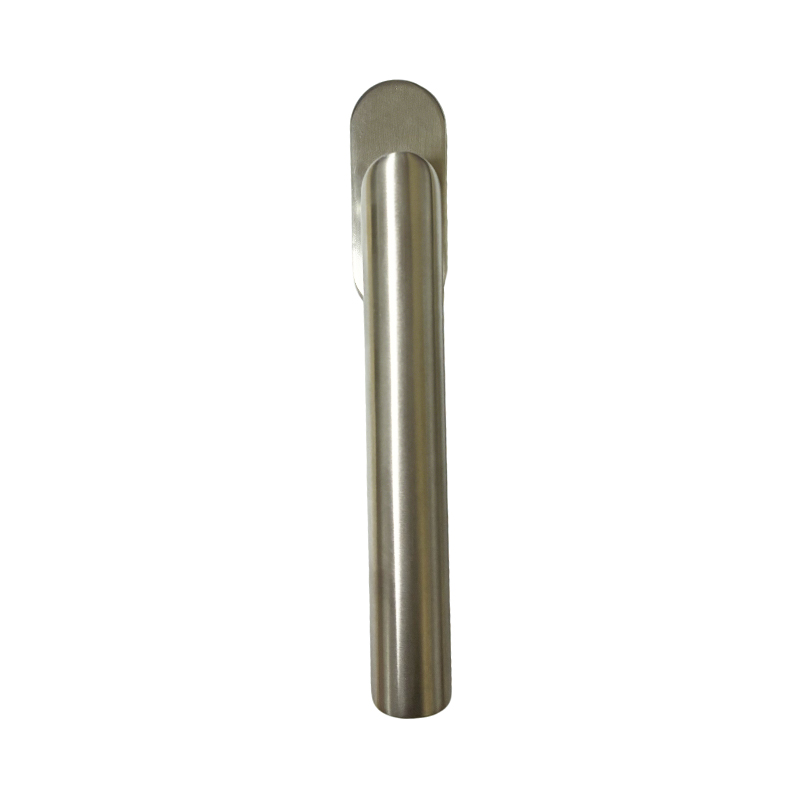

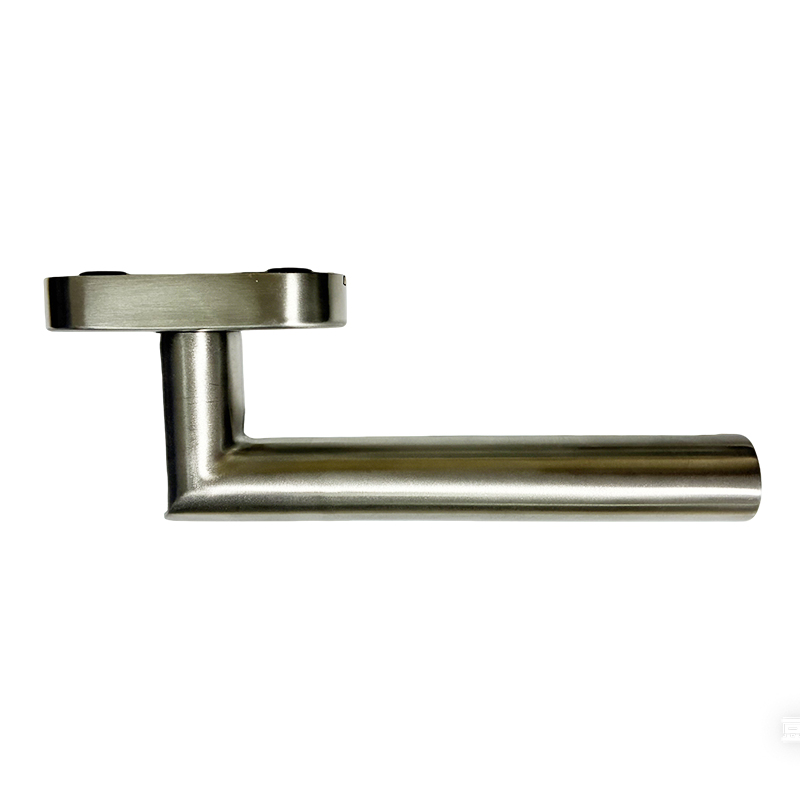

Tilt and Turn Window Handles are operating handles for inward-opening and tilt-and-turn windows, compatible with 90° ball lock mechanisms. They allow for switching between opening, tilting, and closing via rotation. The product features a stainless steel body with a matte finish and internal metal transmission components. The fixing hole spacing is 43mm, and the square shaft specification is 7mm. The overall structure provides mechanical strength and long-term stability, making it suitable for modern window systems requiring precise positioning and smooth opening and closing.

1. Precise Transmission

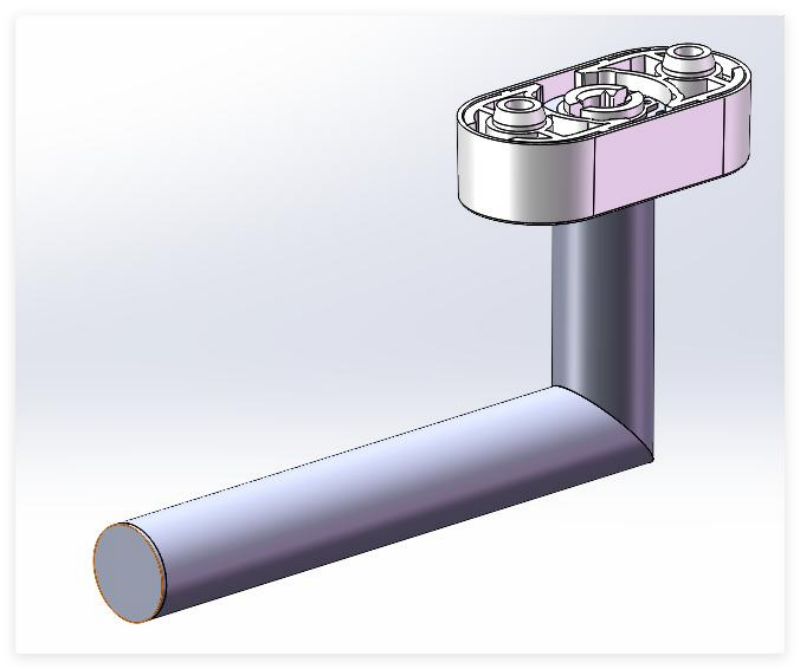

Utilizing a 90° ball lock mechanism, the rotation angle is precisely controlled, and the opening and closing positioning is clear. The internal all-metal transmission components prevent loosening caused by long-term wear of plastic parts. The 7mm square shaft transmission matches mainstream tilt-and-turn window systems, ensuring stable return and clear positioning even after repeated operations.

2. Standard Fixing Design

The fixing hole spacing is 43mm, conforming to mainstream European standard window system installation specifications, facilitating replacement and unified project configuration. No additional hole modifications are required during installation to fit standard window frame structures, reducing on-site adjustment time while ensuring a tight fit between the handle and the window frame, enhancing overall stability.

3. Stainless Steel Structure

The body is made of stainless steel, with a one-piece molded structure, avoiding structural weaknesses at joints. Compared to die-cast products, metal materials offer superior long-term strength and more stable resistance to deformation, maintaining structural integrity under frequent opening and closing conditions.

4. Matte Finish

The surface uses a matte brushed finish to reduce fingerprint residue and light reflection. The matte finish is more suitable for modern architectural styles, maintaining a low-reflection visual effect under different lighting conditions, making Tilt And Turn Window Handles easier to integrate into the overall door and window hardware system.

5. Non-Locking Structure

The non-locking structure design eliminates the need for additional buttons or latches, making rotation smoother and more direct. The simple structure reduces the probability of accidental operation and minimizes maintenance needs due to additional moving parts, making it suitable for unified installation in residential and project settings.

1. Residential System Windows

These Tilt and Turn Window Handles are suitable for residential inward-opening tilt-and-turn window systems. A 90° rotation completes the opening and tilt-and-turn switch. The 7mm square shaft and 43mm hole spacing match mainstream system specifications, ensuring clear positioning after installation and smoother, more stable switching between ventilation and closed states.

2. Centralized Installation in Engineering Projects

In engineering projects, standardized fixed hole spacing and unified transmission structures facilitate batch construction. Consistent specifications reduce compatibility errors between different batches, facilitating rapid on-site assembly and unified acceptance, improving overall construction efficiency.

3. Upgrading Existing Windows

Tilt and Turn Window Handles are suitable for upgrading and replacing existing tilt-and-turn window structures. The 43mm hole spacing and 7mm square shaft specifications match common systems. Replacement does not require modification of the main window frame structure, reducing construction complexity and on-site adjustment time.

4. Modern Architectural Facades

The matte stainless steel exterior complements modern architectural styles, and the low-reflection surface does not produce significant glare under natural light. Simple lines and right-angle transitions create a more unified and harmonious visual effect for the window hardware.

5. Hardware System Matching

It can be used as part of a complete door and window hardware system, maintaining consistency with the door handles of the same series in terms of material and surface treatment. A unified hardware style helps in the overall image expression and standardized management of specifications for the project.

Q: Are these Tilt and Turn Window Handles compatible with all tilt-and-turn windows?

A: The product uses a 7mm square shaft and a 43mm fixing hole spacing, compatible with mainstream European standard systems. However, it is recommended to confirm the existing window hole spacing and square shaft specifications before purchasing to avoid size mismatch issues.

Q: Is the internal transmission structure metal?

A: Yes, the internal transmission components are metal, offering greater long-term stability compared to plastic parts. It maintains good positioning feedback during frequent rotation, reducing loosening due to wear.

Q: Does this model have a locking function?

A: This model is non-locking, without independent buttons or a lock cylinder, suitable for regular opening and ventilation needs. For a locked version, please confirm the specific model and function configuration before ordering.

Q: Does the matte finish easily show fingerprints?

A: The matte brushed surface is less prone to fingerprints and minor scratches compared to a high-gloss finish, making daily use and maintenance simpler. However, it is still recommended to avoid scratching with sharp objects to maintain the appearance.

Q: Is it suitable for large-scale project procurement?

A: Because the fixed hole spacing and square shaft specifications are standardized, it is suitable for centralized installation in projects. Consistent specifications during bulk procurement can reduce installation errors, which is beneficial for on-site construction efficiency and subsequent maintenance management.
